Leica HDS 4050 ScanStation 2 Surveying Laser Scanner

Original price was: $4000.Current price is: $2000.

Dramatically faster scanning also lets users:

Collect data in tighter time windows

Reduce time spent in hazardous locations

Provide project results faster

Collect even more complete data

“Squeeze in” additional service requests from clients

Category: Tag:
Compare
Description

Leica HDS 4050 ScanStation 2 Surveying Laser Scanner

With a 10-times boost in maximum instantaneous scan speed and the full freedom and accuracy of a total station, Leica ScanStation 2 has lifted laser scanning to the next level.This speed and productivity boost builds on the already industry-leading versatility of the ScanStation™ class of laser scanner to make High-Definition Surveying™ (HDS™) profitable for even more as-built and topographic survey projects.

Leica HDS 4050 ScanStation 2 Surveying Laser Scanner

With a 10-times boost in maximum instantaneous scan speed and the full freedom and accuracy of a total station, Leica ScanStation 2 has lifted laser scanning to the next level.This speed and productivity boost builds on the already industry-leading versatility of the ScanStation™ class of laser scanner to make High-Definition Surveying™ (HDS™) profitable for even more as-built and topographic survey projects.





Leica ScanStation 2 Performance Specifications
Instrument Type Pulsed, dual-axis compensated, very-high speed laser scanner, with survey-grade accuracy, range, and field-of-view
User interface Notebook or Tablet PC
Camera Integrated high-resolution digital camera
Accuracy of single measurement Position*                                      6 mm                                           Distance*                                     4 mm                                                   Angle (horizontal/vertical)             60μrad/60μrad (3.8 mgon/3.8 mgon) **
Laser spot size From 0 – 50 m: 4 mm (FWHH-based); 6 mm (Gaussian-based)
Modeled surface precision/noise 2mm **
Target acquisition 2 mm std. deviation
Dual-axis compensator Resolution 1 “, dynamic range +/- 5′
Data integrity monitoring Periodic self-check during operation and start-up
Laser scanning system
Range 300 m @ 90 %; 134 m @18 % albedo
Scan Rate Maximum instantaneous: up to 50,000 points/sec Average: dependent on specific scan density and field-of-view
Scan Density  <1 mm max, through full range; fully selectable horizontal and vertical spacing; single point dwell capability
Laser Class 3R (IEC-60825-1), visible green
Lighting Fully operational between bright sunlight and complete darkness
Power Supply 36 V; AC or DC; hot swappable
Specifications subject to change without notice
See Leica ScanStation 2 Product Specifications for full technical data*
At 50 m range, one sigma ** One sigma

Included

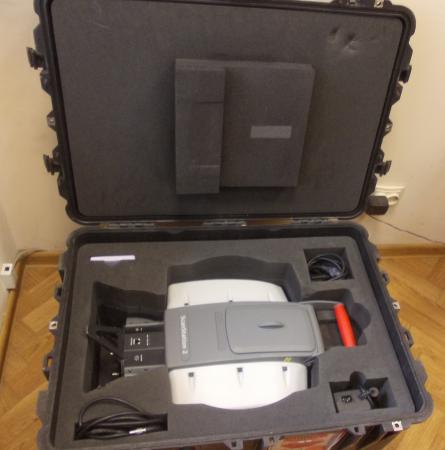

* Leica HDS 4050 ScanStation 2 Surveying Laser Scanner[ID -L/T*]
* Carrying Case
